PMMA · Tube · Square / rectangular
Acrylic Square & Rectangular Tubes

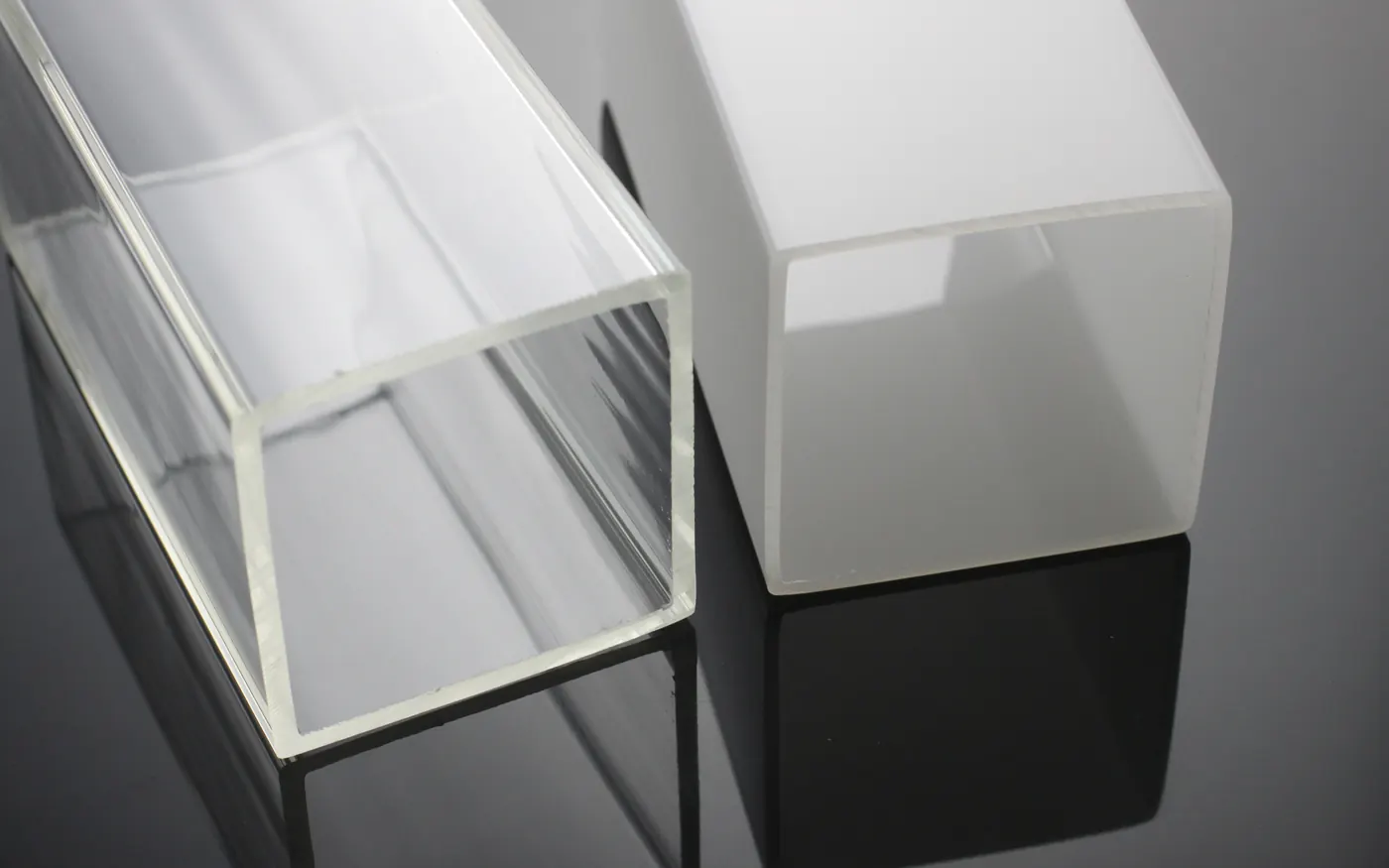

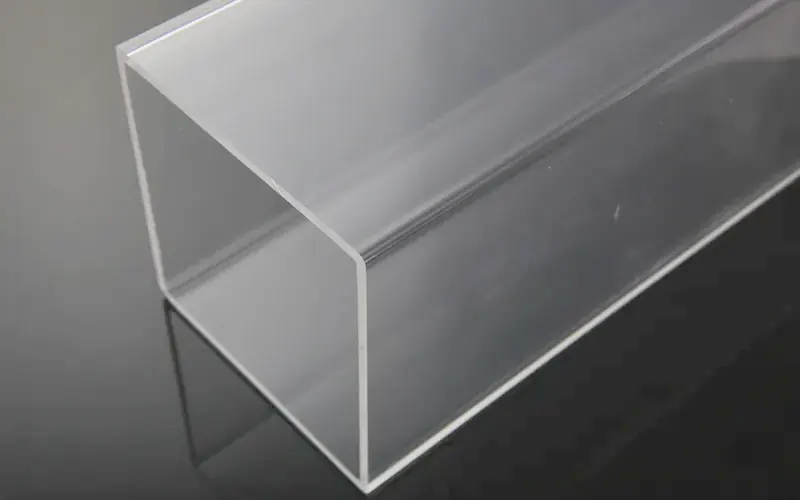

Square and rectangular PMMA tube for display cases, framing, light boxes and furniture components — anywhere a flat face is needed for bonding or mounting that a round tube cannot give.
Stock square & rectangular tube sizes
Size is written as width × height × wall thickness, in mm. If your size is on this list there is no tooling cost and no tooling lead time.
| Width × height | Wall thickness | Section |
|---|---|---|
| 8 × 8 mm | 1 mm | Square |
| 10 × 10 mm | 1 mm | Square |
| 20 × 20 mm | 2 mm | Square |
| 25 × 25 mm | 2 mm | Square |
| 30 × 15 mm | 1.5 mm | Rectangular |
| 30 × 30 mm | 2 mm | Square |
| 40 × 20 mm | 2 mm | Rectangular |
| 40 × 40 mm | 2 mm | Square |
| 40 × 40 mm | 3 mm | Square |
| 40 × 40 mm | 5 mm | Square |
| 50 × 50 mm | 3 mm | Square |
| 60 × 60 mm | 3 mm | Square |
| 60 × 60 mm | 4 mm | Square |
| 70 × 70 mm | 3 mm | Square |
| 75 × 75 mm | 3 mm | Square |
| 80 × 80 mm | 3 mm | Square |
| 80 × 80 mm | 4 mm | Square |
| 90 × 90 mm | 4 mm | Square |
| 100 × 100 mm | 3 mm | Square |
| 100 × 100 mm | 4 mm | Square |
| 120 × 120 mm | 4 mm | Square |
| 145 × 145 mm | 5 mm | Square |
| 154 × 154 mm | 5 mm | Square |
| 168 × 168 mm | 4 mm | Square |
| 168 × 168 mm | 5 mm | Square |
| 170 × 170 mm | 4 mm | Square |
| 200 × 200 mm | 4 mm | Square |
| 200 × 200 mm | 5 mm | Square |
No stock size matches. Send us the dimensions anyway — a die close to your size can often be adapted.
Ordering and lead times
| Maximum size | Up to 200 mm across |
|---|---|
| Dimensional tolerance | Confirmed per section before you order |
| Colours and finishes | Clear, frosted, opal and custom colours |
| Resin grades | Mitsubishi, Evonik or Wanhua |
| Minimum order | No minimum order quantity |
| Sample lead time | 7 days |
| Production lead time | 7–10 days |
How we make it hold up
Two process steps that do not show in a photograph and do not show in the box, but decide whether the part is still sound a year after you built it.
Every acrylic tube is annealed before it ships
Extrusion leaves stress frozen into the wall. You cannot see it in the box — it shows up later, as crazing round a drilled hole, a crack after solvent bonding, or a web of hairlines weeks after the part went together. We heat and slow-cool every acrylic tube to relieve that stress before it leaves the factory. It costs us a process step that a lot of extruders skip, and it is the reason our tube machines, bonds and cleans without going milky.
UV stabiliser and anti-ageing additive as standard
We run a UV stabiliser and an anti-ageing additive in our acrylic on every job, not as a priced option you have to know to ask for. PMMA is already the most weather-stable of the clear plastics; the additive package is what keeps it from yellowing at the edges over an outdoor service life.
Options
- Cut to length
- Drilling and punching
- Polishing and flame polishing
- Screen and UV printing
- Protective film
- Custom colour matching
- Frosted and opal finishes
- OEM and private-label packaging
Applications
- Display cases and vitrines
- Light box framing
- Furniture and shelving components
- Signage structures
Frequently asked
How is the size written?
Width × height × wall thickness in mm. A rectangular section such as 40×20×2 is 40 mm wide, 20 mm high, with a 2 mm wall.
How sharp are the corners?
Extruded corners carry a small radius — a perfectly sharp internal corner cannot be filled consistently. Tell us if corner radius matters to your assembly and we will confirm what the section holds.
Request a quotation
Send the size, quantity and application. If it is a stock size we can usually answer the same day.
