PMMA · Tube · Hexagonal
Acrylic Hexagonal Tubes

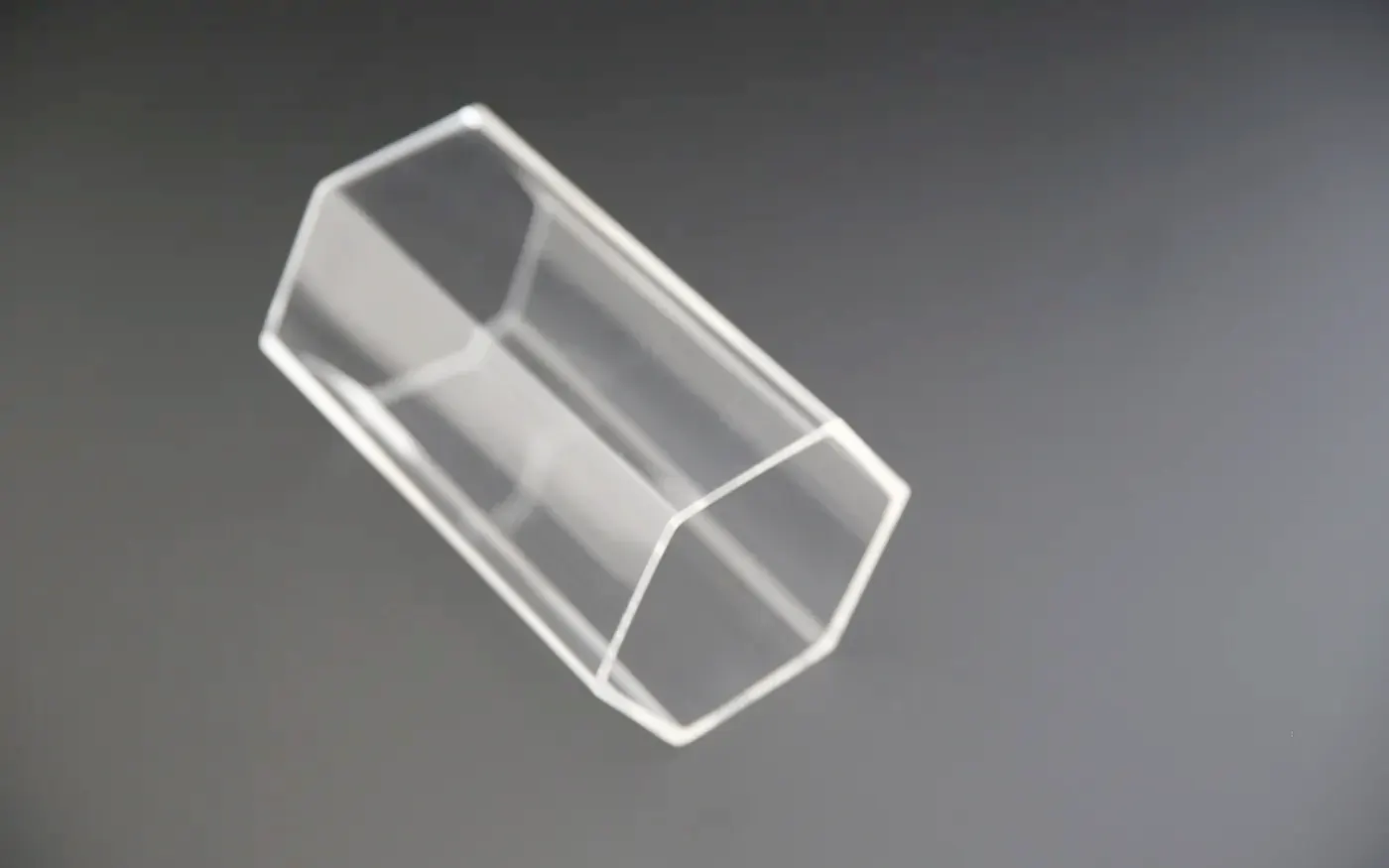

Hexagonal PMMA tube in four stock sizes. Mostly specified for decorative lighting, display plinths and architectural features where a six-sided form reads differently from a plain cylinder.
Stock hexagonal tube sizes
Across corners is the widest measurement; side length is one flat face. All in mm. If your size is on this list there is no tooling cost and no tooling lead time.
| Across corners | Side length | Wall thickness |
|---|---|---|
| 50 mm | 25 mm | 2 mm |
| 100 mm | 50 mm | 3 mm |
| 150 mm | 75 mm | 3.5 mm |
| 200 mm | 100 mm | 4 mm |
No stock size matches. Send us the dimensions anyway — a die close to your size can often be adapted.
Ordering and lead times
| Maximum size | Up to 200 mm across corners |
|---|---|
| Dimensional tolerance | Confirmed per section before you order |
| Colours and finishes | Clear, frosted, opal and custom colours |
| Resin grades | Mitsubishi, Evonik or Wanhua |
| Minimum order | No minimum order quantity |
| Sample lead time | 7 days |
| Production lead time | 7–10 days |
How we make it hold up
Two process steps that do not show in a photograph and do not show in the box, but decide whether the part is still sound a year after you built it.
Every acrylic tube is annealed before it ships
Extrusion leaves stress frozen into the wall. You cannot see it in the box — it shows up later, as crazing round a drilled hole, a crack after solvent bonding, or a web of hairlines weeks after the part went together. We heat and slow-cool every acrylic tube to relieve that stress before it leaves the factory. It costs us a process step that a lot of extruders skip, and it is the reason our tube machines, bonds and cleans without going milky.
UV stabiliser and anti-ageing additive as standard
We run a UV stabiliser and an anti-ageing additive in our acrylic on every job, not as a priced option you have to know to ask for. PMMA is already the most weather-stable of the clear plastics; the additive package is what keeps it from yellowing at the edges over an outdoor service life.
Options
- Cut to length
- Drilling and punching
- Polishing and flame polishing
- Screen and UV printing
- Protective film
- Custom colour matching
- Frosted and opal finishes
- OEM and private-label packaging
Applications
- Decorative and architectural lighting
- Display plinths and risers
- Terrariums and planters
- Retail fixtures
放尺子或手持
透明 / 雾面 / 乳白
Frequently asked
What do "across corners" and "side length" mean?
Across corners is the distance between two opposite corners — the widest measurement. Side length is one flat face. Both are given so you can check the fit either way.
Request a quotation
Send the size, quantity and application. If it is a stock size we can usually answer the same day.
