PMMA · Rod · Square / rectangular

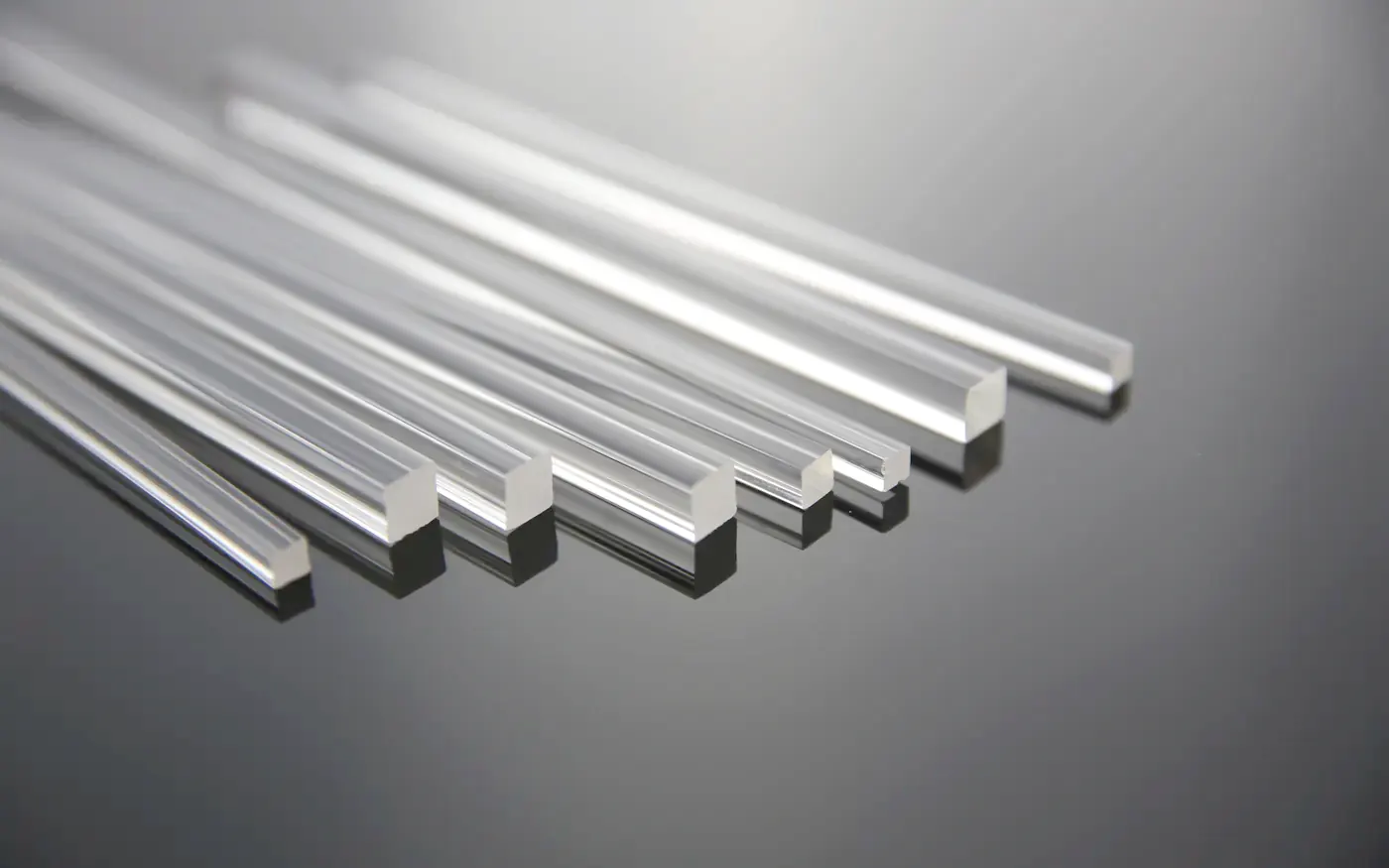

Acrylic Square & Rectangular Rods
Solid PMMA bar in square and rectangular sections. The flat faces make it far easier to bond, mount and register than round rod, which is why it is used for framing and structural display work.
Stock square & rectangular rod sizes
Size is written as width × height, in mm. Solid throughout. If your size is on this list there is no tooling cost and no tooling lead time.
| Width × height | Section |
|---|---|
| 2 × 2 mm | Square |
| 3 × 2 mm | Rectangular |
| 3 × 3 mm | Square |
| 4 × 4 mm | Square |
| 5 × 3 mm | Rectangular |
| 5 × 5 mm | Square |
| 6 × 6 mm | Square |
| 8 × 8 mm | Square |
| 10 × 5 mm | Rectangular |
| 10 × 10 mm | Square |
| 15 × 15 mm | Square |
| 20 × 20 mm | Square |
| 30 × 30 mm | Square |
No stock size matches. Send us the dimensions anyway — a die close to your size can often be adapted.
Ordering and lead times
| Maximum size | Up to 50 × 50 mm |
|---|---|
| Dimensional tolerance | Confirmed per section before you order |
| Colours and finishes | Clear, frosted, opal and custom colours |
| Resin grades | Mitsubishi, Evonik or Wanhua |
| Minimum order | No minimum order quantity |
| Sample lead time | 7 days |
| Production lead time | 7–10 days |
How we make it hold up
Two process steps that do not show in a photograph and do not show in the box, but decide whether the part is still sound a year after you built it.
UV stabiliser and anti-ageing additive as standard
We run a UV stabiliser and an anti-ageing additive in our acrylic on every job, not as a priced option you have to know to ask for. PMMA is already the most weather-stable of the clear plastics; the additive package is what keeps it from yellowing at the edges over an outdoor service life.
Options
- Cut to length
- Drilling and punching
- Polishing and flame polishing
- Screen and UV printing
- Protective film
- Custom colour matching
- Frosted and opal finishes
- OEM and private-label packaging
Applications
- Display framing and structures
- Furniture components
- Machine guards and spacers
- Model making
放尺子或手持
透明 / 雾面 / 乳白
Frequently asked
Is this solid or hollow?
Solid throughout. If you need a hollow square section, see our square tube page.
Request a quotation
Send the size, quantity and application. If it is a stock size we can usually answer the same day.
